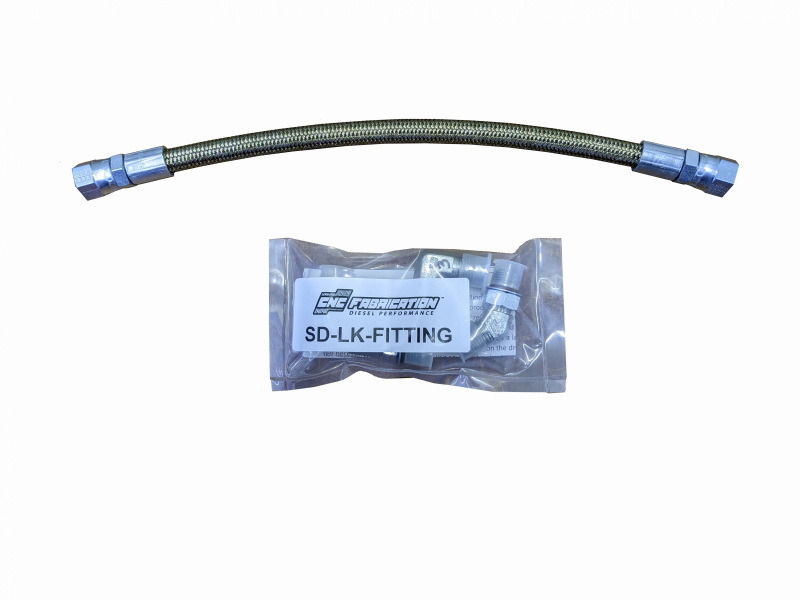

98.5-03 7.3L CNC Fab SD Passenger HPOP Line With Fittings - 424011

This hpop line is a replacement passenger side line for the Early '99 through '03. Fittings are the same style as those used on the...
Vendor: CNC Fabrication
SKU: 424011
Availability: Many In Stock
Product Type: Hpop Lines
$89.95
$89.95
Please hurry! Only -6 left in stock
Subtotal: $89.95
10 customers are viewing this product

Return Policy

Within 21 Days

California Residents:
Prop 65 Warning:
Cancer and Reproductive Harm

This hpop line is a replacement passenger side line for the Early '99 through '03.

Fittings are the same style as those used on the 94.5-97 Powerstroke engines. This line can be used on 94.5-97 trucks that have e-fuel for a cleaner install.

  • All new Genuine Brennan™ fittings
  • DuPont Teflon™ lining just like OEM
  • Burst pressure rating of 16,000psi
  • Working temperature rating of 400*F
  • Nominal working pressure is 5000psi
  • High quality Viton™ o-rings
  • Made In The USA In Our Shop
  • Free Ground Shipping

DOWNLOADABLE INSTALL INSTRUCTIONS

We know it may be cheaper for those wanting to save some money and have a local hydraulic shop make lines, but in our 25yrs experience, it is not advisable due to the amount of thermal cycling and engine sees.  Normal hydraulic is meant for normal hydraulic use, NOT on these engines.

NOTE:  If you are unsure of installing this line yourself, seek out a competent and qualified technician to install the lines.

INSTALLATION:

Disconnect the battery grounds before installation to avoid accidentally arc'ing the line on the glow plug relay or the alternator charging lug. Use pictures from the product webpage for routing example. The fittings are marked with numbers to match installation location (see below for reference). After installation, be sure there are no other lines/wires that are touching the lines that could potentially rub through and damage either the HPOP line or the other line that may be touching it. Use a small section of wire loom protector or a larger piece or rubber hose to wrap around the contact point. Many will remove or bend the engine eyelet on the driver side as a precaution, but it is not necessary. Sealant is not necessary, but IF you choose to use any, use Loctite 680 or Permatex 64000 retaining compound (green) only on the fittings installed in the HPOP.  If you are unsure of installing yourself, seek out a competent and qualified technician to install the lines.

*REMOVE THE SPRING CHECKS IN THE PUMP UNDER THE STOCK FITTINGS, DO NOT RE-INSTALL*

HOSE IDENTIFICATION: 98.5-03 2 LINE-BOTH SIDES ARE SAME LENGTH. 94.5-97 2 LINE- PASSENGER IS LONGER OF THE 2. **FOR ANY 3 LINE KIT THE SHORTEST LINE IS THE CROSSOVER HOSE.

FITTING MARKINGS: 1- FRONT PUMP PORT 2- REAR PUMP PORT 3- DRIVER HEAD 4- 94.5-97 PASSENGER HEAD 5- 98.5-03 PASSENGER HEAD AND CROSSOVER **94.5-97 driver side fitting gets moved forward one port on the head to match 98.5-03**

Pump Fittings: 28FT/LBS • Head Fittings: 23FT/LBS • Hose Ends: 21FT/LBS

Brand: CNC FabricationManufacturer Part Number: 424011Length (in): 12.0Width (in): 2.0Height (in): 2.0Weight (lbs): 2.0
