98.5-03 7.3L CNC Fab HPO Lines w/ Crossover Fitting Pack - 424025

98.5-03 7.3L Replacement Fitting Pack for CNC Fab HPO Lines W/ HPX- 424025 All new Brennan™ Hydraulic fittings  High quality Viton™ o-rings INSTALLATION:   Disconnect the...

Part Number: 424025

Vendor: CNC Fabrication
Availability: Many In Stock
Product Type: Hpop Lines
$44.95
$44.95
Please hurry! Only -3 left in stock
Subtotal: $44.95
10 customers are viewing this product

Return Policy

Within 21 Days

California Residents:
Prop 65 Warning:
Cancer and Reproductive Harm

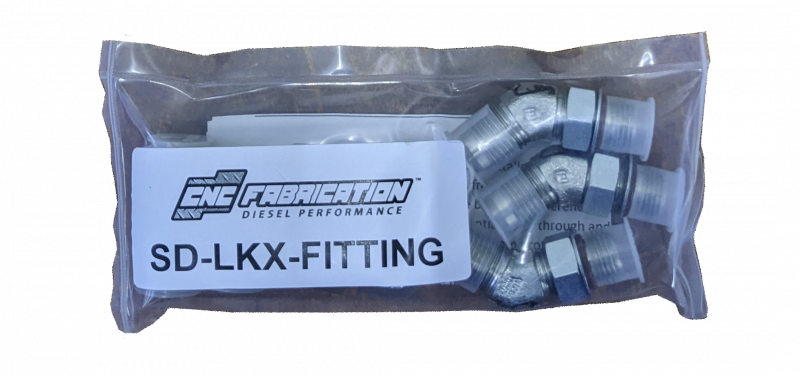

98.5-03 7.3L Replacement Fitting Pack for CNC Fab HPO Lines W/ HPX- 424025

  • All new Brennan™ Hydraulic fittings
  • High quality Viton™ o-rings

INSTALLATION:

Disconnect the battery grounds before installation to avoid accidentally arc'ing the line on the glow plug relay or the alternator charging lug. Use pictures from the product webpage for routing example. The fittings are marked with numbers to label install location (see below for reference). After installation, be sure there is no other lines/wires that are touching the lines that could potentially rub through and damage either the HPOP line or the other line that may be touching it.  Use a small section of wire loom protector or a larger piece or rubber hose to wrap around the contact point.  Many will remove or bend the engine eyelet on the driver side as a precaution, but it is not necessary.  Sealant is not necessary, but IF you choose to use any, use Loctite 680 or Permatex 64000 retaining compound (green) only on the fittings installed in the HPOP.  If you are unsure of installing yourself, seek out a competent and qualified technician to install the lines.

HOSE IDENTIFICATION:  98.5-03 Superduty 2 LINE - BOTH SIDES ARE SAME LENGTH. 94.5-97 OBS 2 LINE - PASSENGER IS LONGER OF THE 2

FITTING MARKINGS: 1- FRONT PUMP PORT 2- REAR PUMP PORT 3- DRIVER HEAD 4- OBS PASSENGER HEAD 5- SD PASSENGER HEAD AND CROSSOVER

Pump Fittings: 28FT/LBS • Head Fittings: 23FT/LBS • Hose Ends: 21FT/LBS

Brand: CNC FabricationManufacturer Part Number: 424025Length (in): 8.0Width (in): 5.0Height (in): 1.0Weight (lbs): 0.6
