94.5-03 7.3L CNC Fab Tow Master 160/30 Injectors - 422037

These CNC Fabrication, LLC remanufactured Tow Master (160/30) injectors will put new life back into your 94.5-03...

Part Number: 422037

Vendor: CNC Fabrication
Availability: Many In Stock
Product Type: Fuel Injectors
Please hurry! Only -3 left in stock
Select Core Fee Option: Sending Cores In First
Subtotal: $1,745.95
10 customers are viewing this product

Return Policy

Within 21 Days

California Residents:
Prop 65 Warning:
Cancer and Reproductive Harm

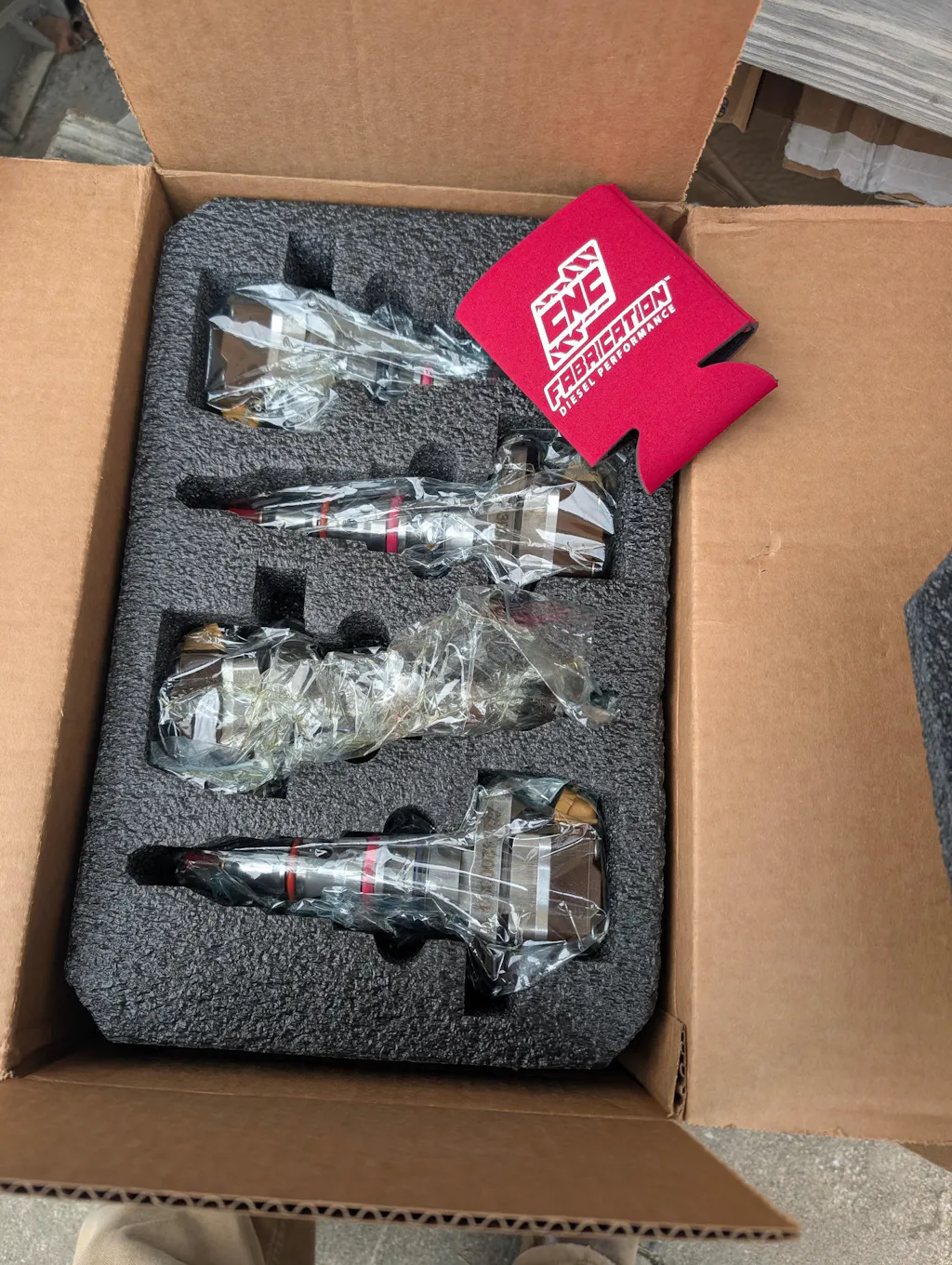

These CNC Fabrication, LLC remanufactured Tow Master (160/30) injectors will put new life back into your 94.5-03 7.3L Ford Powerstroke.

Commonly called a Stage 1.5, these "Tow Master" 160/30 injectors will typically produce around 375-400hp with proper supporting modifications depending on the year of your truck.

**See Suggested Modifications tab for turbo, fuel, and hpop upgrades**


  • Great for towing, or just wanting a decent power increase
  • 30% over nozzles
  • Tungsten Coated Plungers and Barrels
  • O-rings
  • Nozzle and Intensifiers Springs
  • Better than OE specifications
  • We do NOT use shims, these injectors are machined to set proper armature clearance
  • Each set of injectors will come with flow sheet test results
  • Tested on the newest Hartridge flow bench using the latest injector technology


    **See Core Policy >>> Here <<<**

    If you are sending in your cores first, please click the "SENDING IN FIRST" link below and print off the form to send it in with your injectors. If you have extra cores, please see the other form for store credit or reimbursement options.



    Covered by CNC Fabrication's limited lifetime warranty.  Warranty covers any damages done during shipping, prior to installation, and if all installation steps were followed.  Warranty VOID if damage is done due to improper care of the purchaser's vehicle, improper fuel, etc.  Warranties are non-transferable, and only offered to the original purchaser.

    Suggested Modifications

    94.5-97 Trucks: These are a great upgrade from the stock 90cc injector. We do recommend upgrading your turbo and adding an intercooler. These will require custom tuning.

    Recommended Turbo Options:

    • KC Turbo KC300X Stage 1 63/70 94-97 7.3L Turbo 1.0 AR Housing - 300163
    • Borg Warner s363sxe
    • Borg Warner s364.5sxe
    • BANKS POWER 94-97 7.3L Techni-Cooler intercooler system - 25970

    Recommended Fuel Upgrade:

    • None Needed
    • 94.5-03 7.3L Fuel System Bundle - 7.3-BUND-FUEL

    Recommended Hpop Upgrade:

    • Bosch 99.5-03 7.3L High Pressure Oil Pump - HP008X (Cannot be used on 94.5-95 model years)
    • CNC Fabrication 94.5-95 7.3L Stage 1 HPOP - 424015
    • CNC Fabrication 96-03 7.3L Stage 1 HPOP - 424017

    98.5-03 Trucks: These are a nice mild power upgrade and a bit more efficient than stock 130-140cc split-shot injectors. They will work with no other modifications, but we do suggest a turbo upgrade. Custom tuning is required due to these being a single shot injector vs split shot. Note the links for Early '99 trucks.

    Recommended Turbo Options:

    • KC Turbo KC300X 63/68 Late 99-03 7.3L Turbo - 300235
    • KC Turbo KC300X 63/73 Late 99-03 7.3L Turbo - 300223
    • KC Turbo KC300X 63/68 Early 99 7.3L Turbo - 300234
    • KC Turbo KC300X 63/73 Early 99 7.3L Turbo - 300222
    • Borg Warner s363sxe
    • Borg Warner s364.5sxe

    Recommended Fuel Upgrade:

    • None needed, but this kit is a nice upgrade
    • CNC Fabrication 99-03 7.3L 4-Line Feed Fuel Line Kit - 422001
    • 94.5-03 7.3L Fuel System Bundle - 7.3-BUND-FUEL

    Recommended Hpop Upgrade:

    • Bosch 99.5-03 7.3L High Pressure Oil Pump - HP008X
    • CNC Fabrication 96-03 7.3L Stage 1 HPOP - 424017
    Brand: CNC Fabrication
    Manufacturer Part Number: 422037
    Length (in): 17.0
    Width (in): 11.0
    Height (in): 7.0
    Weight (lbs): 25.0
