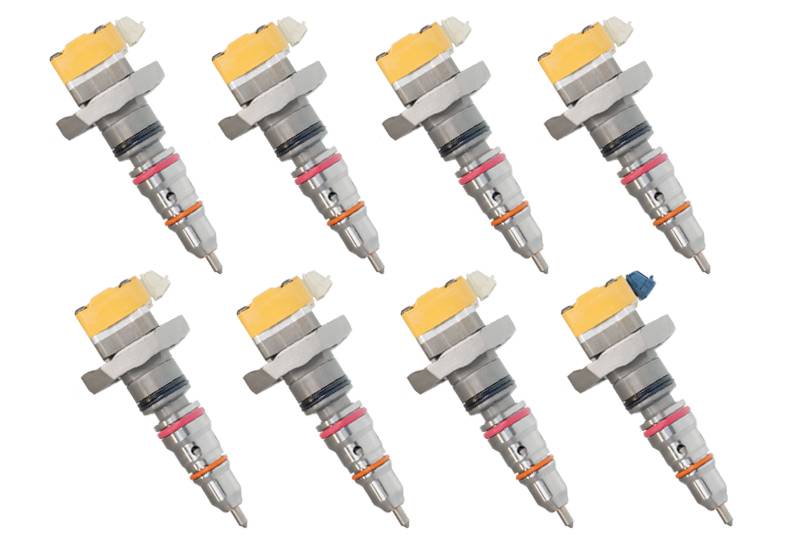

Commonly called a Stage 1 or AC code High Output injectors, these brand new "Stock Plus" 160/0 injectors will typically produce around 325-375hp with proper supporting modifications depending on the year of your truck.
**See Suggested Modifications tab for turbo, fuel, and hpop upgrades**
Features:
- Great for towing, or just wanting a mild power increase
- 100% Brand New Injector
- Each set of injectors will come with flow sheet test results
- Tested on the newest Hartridge flow bench using the latest injector technology
- Free Ground Shipping with a return label
Shipping: LEAD TIMES VARY DEPENDING ON WORKLOAD
**PLEASE ALLOW 3-5 DAYS AFTER YOUR CORE(S) HAS BEEN RECEIVED FOR OUR ACCOUNTING TEAM TO PROCESS YOUR REFUND. EXPECT DELAYS IF YOU DO NOT FILL OUT THE PAPERWORK PROPERLY**
**See Core Policy >>> Here <<<**
If you are sending in your cores first, please click the "Documents" tab and print off the form to send it in with your injectors. If you have extra cores, please see the other form for store credit or reimbursement options.
Warranty:
Covered by CNC Fabrication's limited lifetime warranty. Warranty covers any damages done during shipping, prior to installation, and if all installation steps were followed. Warranty VOID if damage is done due to improper care of the purchaser's vehicle, improper fuel, etc. Warranties are non-transferable, and only offered to the original purchaser.
Suggested Modifications
94.5-97 Trucks: These are a great upgrade from the stock 90cc injector with no other supporting mods. We do recommend upgrading your turbo at the very least with a billet wheel. These will run just like stock on OBS trucks with no custom tuning needed and will work with canned tunes due to them already being a single shot injector, but custom tuning will be better.
Recommended Turbo Options:
- KC Turbos 94.5-03 7.3L S300 Turbine/Billet Wheel Kit - 300377
- 94.5-97 KC Turbo Stock Plus - 300134
- KC Turbo KC300X Stage 1 63/70 94-97 7.3L Turbo 1.0 AR Housing - 300163
- Borg Warner s363sxe
Recommended Fuel Upgrade: None needed
Recommended Hpop Upgrade:
- CNC Fabrication 94.5-95 7.3L Stage 1 HPOP - 424015
- CNC Fabrication 96-03 7.3L Stage 1 HPOP - 424017
98.5-03 Trucks: These are a mild power upgrade and a bit more efficient than stock 130-140cc split-shot injectors. They will work with little to no other modifications except they will require custom tuning due to these being a single shot injector vs split shot. No turbo upgrade is necessary, but we do recommend a billet wheel or this turbo. for the 99.5-03 or this one if you have the early 99 truck.
Recommended Turbo Options:
- KC Turbos 94.5-03 7.3L S300 Turbine/Billet Wheel Kit - 300377
- KC Turbo 99.5-03 7.3L Stock Plus Turbo - 300132
- KC Turbo KC300X 63/68 Late 99-03 7.3L Turbo - 300235
- KC Turbo EARLY 99 7.3L Stock Plus Turbo - 300133
- KC Turbo KC300X 63/68 Early 99 7.3L Turbo - 300234
- Borg Warner s363sxe
Recommended Fuel Upgrade:
- None needed, but this kit is a nice upgrade: CNC Fabrication 99-03 7.3L 4-Line Feed Fuel Line Kit - 422001
Recommended Hpop Upgrade:
- Bosch 99.5-03 7.3L High Pressure Oil Pump - HP008X
- CNC Fabrication 96-03 7.3L Stage 1 HPOP - 424017
Brand: CNC FabricationManufacturer Part Number: 422054Length (in): 17Width (in): 11Height (in): 7Weight (lbs): 25
