94.5-03 7.3L CNC Fab NEW Hot Street 238cc Hybrid Injectors - 42206X

These CNC Fabrication, LLC NEW Mild Street (238/80, 238/100, or 238/200) hybrid injectors will put new life back into your 94.5-03 7.3L Ford Powerstroke Commonly...
Vendor: CNC Fabrication
SKU: 422060
Availability: Many In Stock
Product Type: Fuel Injectors
$4,295.95
$4,295.95
Please hurry! Only 0 left in stock
Select Nozzle Size: 80% Nozzle - 422060
Subtotal: $4,295.95
10 customers are viewing this product

Return Policy

Within 21 Days

California Residents:
Prop 65 Warning:
Cancer and Reproductive Harm

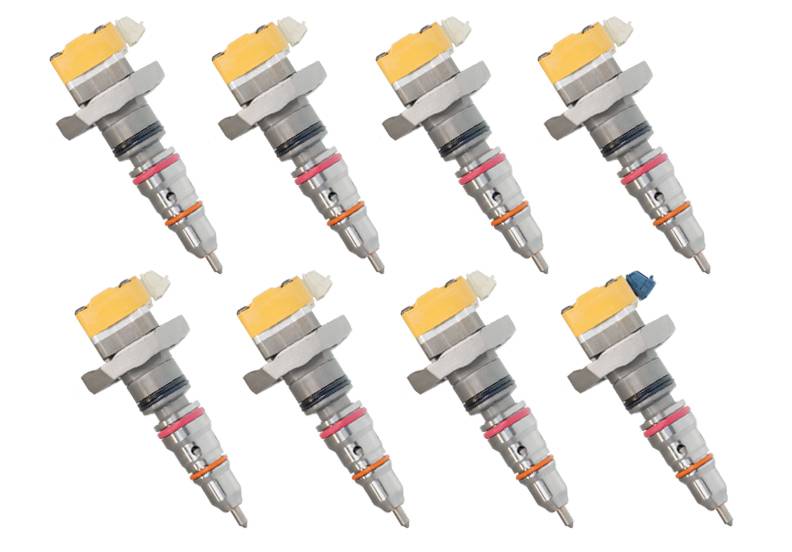

These CNC Fabrication, LLC NEW Mild Street (238/80, 238/100, or 238/200) hybrid injectors will put new life back into your 94.5-03 7.3L Ford Powerstroke

Commonly called a Stage 3, these brand new "Hot Street" 238cc hybrid injectors will typically produce around 500-550hp with proper supporting modifications depending on the year of your truck.  80% nozzles will give better towing capabilities and run cleaner, 100% nozzles will give a more top end power, more low end torque (good balance of work and fun), 200% nozzles will give the most power but expect EGT's to be higher.  These are by far the most popular sized injector to daily drive and give a Camaro a run for its money.  Mainly because a T4 turbo mount is not "necessary", nor are billet rods and a plate girdle.

**See Suggested Modifications tab for turbo, fuel, and hpop upgrades**

Features:

  • Decent for towing, or just wanting a sizeable power increase
  • 100% Brand New Injectors
  • 80%, 100%, or 200% over nozzles
  • Each set of injectors will come with flow sheet test results
  • Tested on the newest Hartridge flow bench using the latest injector technology
  • Free Ground Return Shipping

Shipping: Lead times may vary depending on workload and availability of new injector bodies from Alliant Power

**PLEASE ALLOW 3-5 DAYS AFTER YOUR CORE(S) HAS BEEN RECEIVED FOR OUR ACCOUNTING TEAM TO PROCESS YOUR REFUND. EXPECT DELAYS IF YOU DO NOT FILL OUT THE PAPERWORK PROPERLY**

    **See Core Policy >>> Here <<<**

    1. CORE RETURN
    2. INJECTOR REGISTRATION
    3. SENDING IN FIRST

    Warranty:

    Covered by CNC Fabrication's limited lifetime warranty.  Warranty covers any damages done during shipping, prior to installation, and if all installation steps were followed.  Warranty VOID if damage is done due to improper care of the purchaser's vehicle, improper fuel, etc.  Warranties are non-transferable, and only offered to the original purchaser.

    Suggested Modifications

    94.5-97 Trucks:  We highly recommend upgrading your turbo, fuel system, hpop, and adding an intercooler. These will require custom tuning. Stage 1 hpop will work with these injectors, but our stage 2 will perform slightly better. Stock fuel and hpop (15*) system will not support these.

    Recommended Turbo Options:

    • KC Turbo KC300X Stage 3 66/73 94-97 7.3L Turbo - 300230
    • Borg Warner s366sxe
    • Borg Warner s369sxe
    • BORG WARNER S467.7FMW T4 TURBO - 178855
    • BANKS POWER 94-97 7.3L Techni-Cooler intercooler system - 25970

    Recommended Fuel Upgrade:

    • CNC Fabrication 94.5-E99 7.3L 4-Line Feed Fuel Line Kit - 7.3-OBSE99-VMFK
    • AEM 400LPH Fuel pump (AN) - 50-1005
    • AIRDOG II-5G '99-03 7.3L Air/Fuel Separation System - A7SABF592
    • 94.5-03 7.3L Fuel System Bundle - 7.3-BUND-FUEL

    Recommended Hpop Upgrade:

    • Bosch 99.5-03 7.3L High Pressure Oil Pump - BOSC-HP008X (Cannot be used on 94.5-95 model years)
    • CNC Fabrication 94.5-95 7.3L Stage 1 HPOP - 7.3-HPOP-STG1-94.5-95
    • CNC Fabrication 96-03 7.3L Stage 1 HPOP - 7.3-HPOP-STG1-96-03
    • CNC Fabrication 94.5-95 7.3L Stage 2 HPOP - 7.3-HPOP-STG2-94.5-95
    • CNC Fabrication 96-03 7.3L Stage 2 HPOP - 7.3-HPOP-SGT2-96-03

    98.5-03 Trucks: These are a significant power upgrade. We highly suggest a turbo upgrade and hpop upgrade. Custom tuning is required. Note the links for Early '99 trucks.  Stock fuel system will not fully support this injector.

    Recommended Turbo Options:

    • KC Turbo KC300X Stage 3 66/73 (0.84 A/R) Late 99-03 7.3L Turbo - 300907
    • KC Turbo KC300X Stage 3 66/73 (1.0 A/R) Late 99-03 7.3L Turbo - 300232
    • KC Turbo KC300X Stage 3 66/73 Early 99 7.3L Turbo - 300231
    • Borg Warner s364.5sxe - More for those who tow more and run a lower HP tune file
    • Borg Warner s366sxe
    • Borg Warner s369sxe
    • BORG WARNER S467.7FMW T4 TURBO - 178855

    Recommended Fuel Upgrade:

    • CNC Fabrication 99-03 7.3L 4-Line Feed Fuel Line Kit - 7.3-SD-BRFK
    • CNC Fabrication Late 99-03 7.3L 4-Line Feed Fuel Line Kit - 7.3-SD-VMFK
    • AEM 400LPH Fuel pump (AN) - 50-1005
    • AIRDOG II-5G '99-03 7.3L Air/Fuel Separation System - A7SABF592
    • 94.5-03 7.3L Fuel System Bundle - 7.3-BUND-FUEL

    Recommended Hpop Upgrade:

    • Bosch 99.5-03 7.3L High Pressure Oil Pump - BOSC-HP008X
    • CNC Fabrication 96-03 7.3L Stage 1 HPOP - 7.3-HPOP-STG1-96-03
    • CNC Fabrication 96-03 7.3L Stage 2 HPOP - 7.3-HPOP-SGT2-96-03
    Brand: CNC FabricationManufacturer Part Number: 422060, 422061, 422062Length (in): 17.0Width (in): 11.0Height (in): 7.0Weight (lbs): 25.0
