03-04 6.0L CNC Fab In-line Transmission Filter By-pass Manifold - 425002

03-04 6.0L CNC Fab In-line Transmission Filter By-pass Manifold - 425002

Update your 03-04 6.0L Powerstroke Superduty with this CNC Fabrication, LLC billet aluminum 6.0L Powerstroke transmission in-line...

Part Number: 425002

Vendor: CNC Fabrication
Availability: Many In Stock
Product Type: Transmission Filter Kit
$159.95
$159.95

Item Inquiry

Please hurry! Only 0 left in stock
Subtotal: $159.95
10 customers are viewing this product

Return Policy

Within 21 Days

California Residents:
Prop 65 Warning:
Cancer and Reproductive Harm

Description

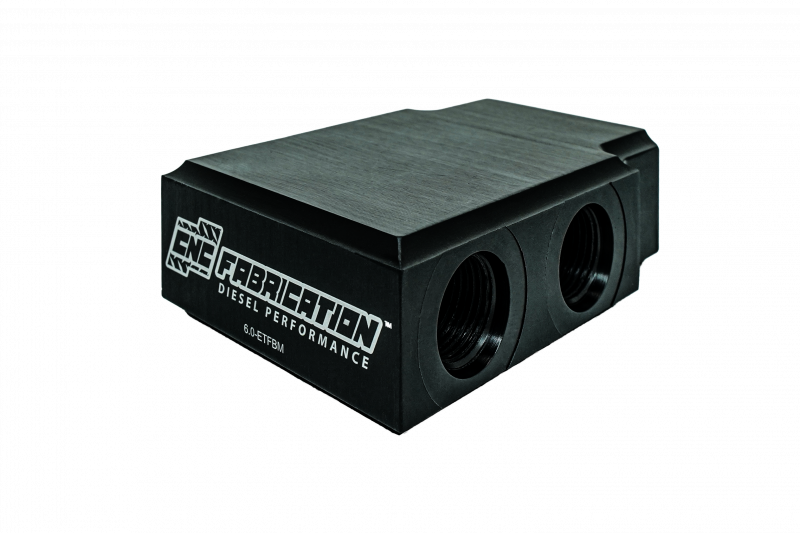

Update your 03-04 6.0L Powerstroke Superduty with this CNC Fabrication, LLC billet aluminum 6.0L Powerstroke transmission in-line filter by-pass manifold

If you have not installed the later 6.4L Powerstroke transmission pan and filter, then please add the part number 6.0-ETFBM-KIT to your cart as this is the complete kit with pan, gasket, filter, and bolt pack.  Your stock 6.0L transmission filter in the pan will not properly filter the fluid as it is more of a screen to catch larger debris if you ONLY install this manifold without the 6.4L pan and filter.

You will need to look under your truck in the area in front of the AC compressor to see which housing you have before you order the correct version.  The early 03-04 (leaf spring) trucks filter housing will have brass hose barbs on side closest to the front of the truck and the fittings closest to the AC compressor are quick disconnect (Bundy style) fittings.  On the 05-07 (coil over spring) trucks, all 4 fittings are the same quick disconnect size.

FEATURES:

  • In-house CNC Machined on our Hurco VMX42i milling center
  • T-6061 Billet Aluminum
  • Anodized to Military Spec Mil-A-8625 Hardcoat
  • Easy install
  • New High Temp Viton Military Spec o-rings
  • New Grade 10.9 Yellow Zinc Coated Socket Head Metric bolts
INSTALLTION INSTRUCTIONS

    The stock 6.0L in-line "toilet paper" filter housing is notorious for being difficult to remove due to the threads seizing from corrosion. This can result in the hex casting on the bottom of the filter housing breaking off while trying to loosen it. If the hex portion is already broken, then you have to use a pipe wrench, and it is common for the pipe wrench to exert too much pressure on the housing and crack the side of the bowl section.

    Additional Information
    Brand: CNC Fabrication
    Manufacturer Part Number: 425002
    Length (in): 9.0
    Width (in): 4.0
    Height (in): 3.0
    Weight (lbs): 2.0
